1B6629 BRASS PROCON PUMP NEW

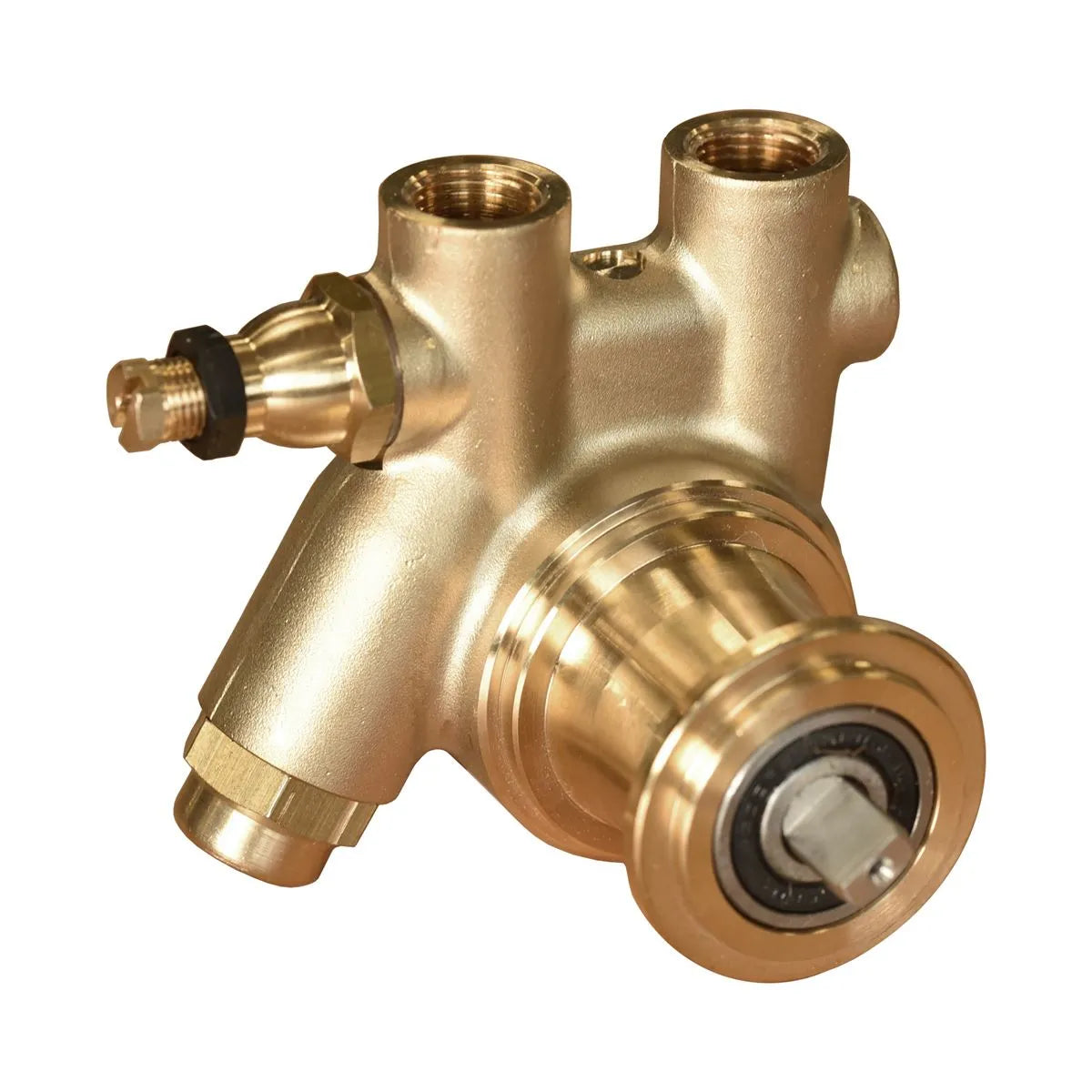

Brass Pump Head

The Rotary Vane Pumps are volumetric pumps designed for pumping water and moderate aggressive liquids with low flow at high pressure.

Technical features and manufacturing characteristics

The rotary vane pump is brass made with a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. The inlet and outlet ports are 3/8" NPT/GAS threaded. The pump is designed to directly mount to the motor with a stainless steel clamp. For different mounting arrangements, see our technical info “optional mountings”. Maximum operative temperature: 70 °C (158 °F).

Main applications

• Beverage vending machines
• Post-mix drink dispensers
• Espresso coffee machines
• Cooling systems
• Reverse osmosis
• Ultra-filtration
• Water dispensers

Pump weight: 1,1 kg / 2.5 Lbs (clamp mount) 1,3 kg / 2.9 Lbs (clamp mount w/strainer) - Characteristics at constant motor speed, water at 20 °C / 68 °F and by-pass blocked For applications involving other fluids, high temperatures or unusual processing conditions

Part No - PUMP0011S
