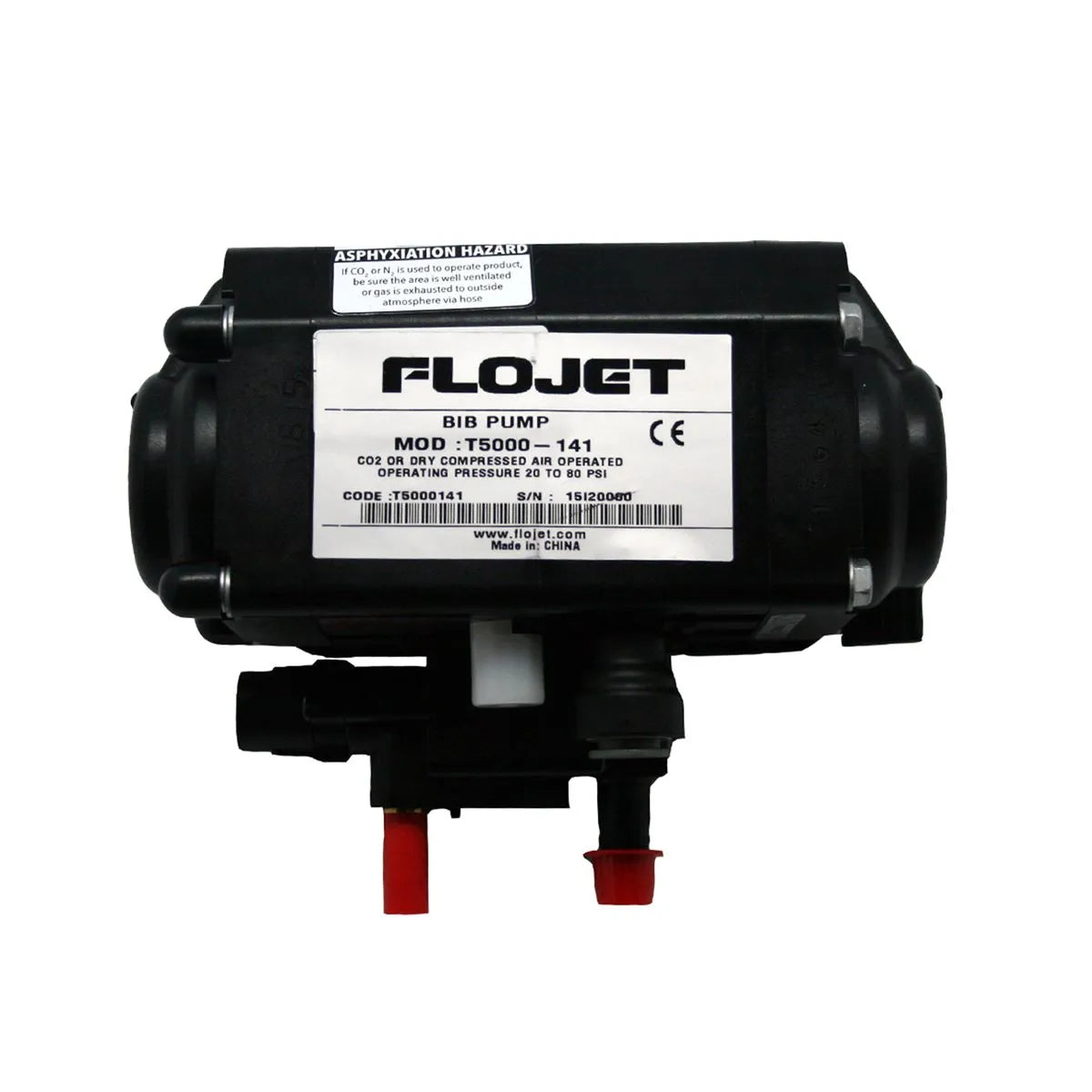

FLOJET PUMP T5000141 1/4 BARB INLET

Supplier Part Number: PUMP0002F

FLOJET PUMP T5000141 1/4 BARB INLET

Applications

• Designed for dispensing Bag-in-Box syrups, juice concentrate (without pulp or particulates), teas, wines, and liquor
• Supplies the following from remote location: Four (4) 3.0 oz. (89 ml) valves1 or Two (2) 4.5 oz. (133 ml) valves2

Each valve dispenses syrup at 0.50 oz./sec.

Each valve dispenses syrup at 0.75 oz./sec.

Special Features

• Service life of 40,000 gallons (150,000 L)
• Compact design with quick disconnect fittings for simple, quick installation
• Shuts off automatically when bag is empty and restarts when a full bag is connected
• High altitude auto shut-off also available
• Fully automatic, operates only when beverage is being dispensed
• 1/4” (6.35 mm) barbed, CO2 exhaust port connection for venting away from confined areas
• Maintains constant pressure at the dispensing valve
• High suction capability empties syrup down to a minimum residual
• Recyclable materials
