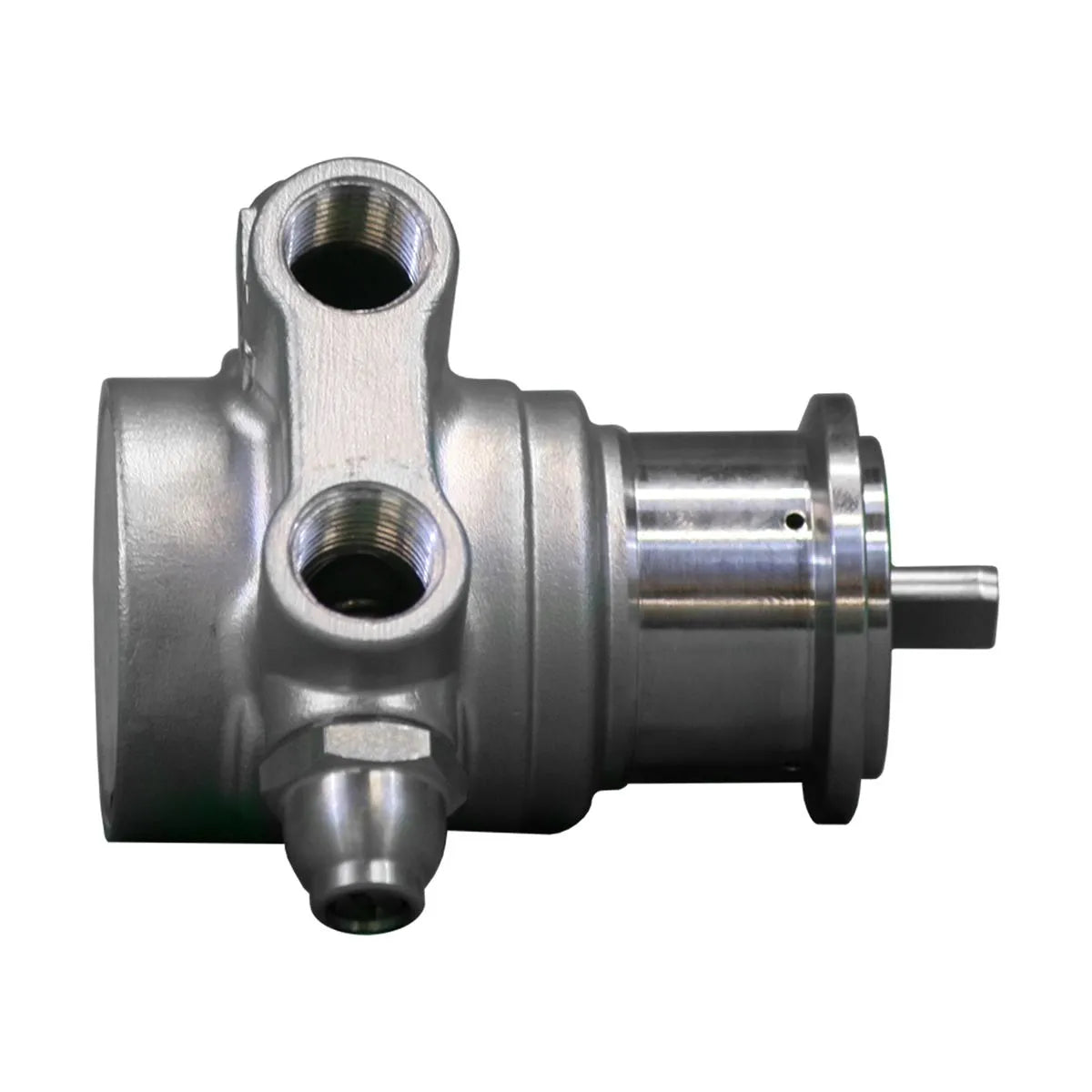

Stainless Steel Pump Head

Clamp or to M71 and M80 UNELMEC or NEMA 56C frame motors with the Fluid-o-Tech® coupling and adapter set. Maximum operative temperature: 70 °C (158 F).

TECHNICAL INFORMATION

Pump housing material - Stainless steel

Pumping Chamber – Carbon

Ports - 3/8” GAS or NPT

Speed limit - 1725 rpm

Max Static Pressure – 20 bar/290 psi

Pump Weight – Clamp Mount 1.2kg (2.7 lb)

Flange Mount 1.5kg (3.3 lb)

Part No - PUMP01
