Booth Dispensers

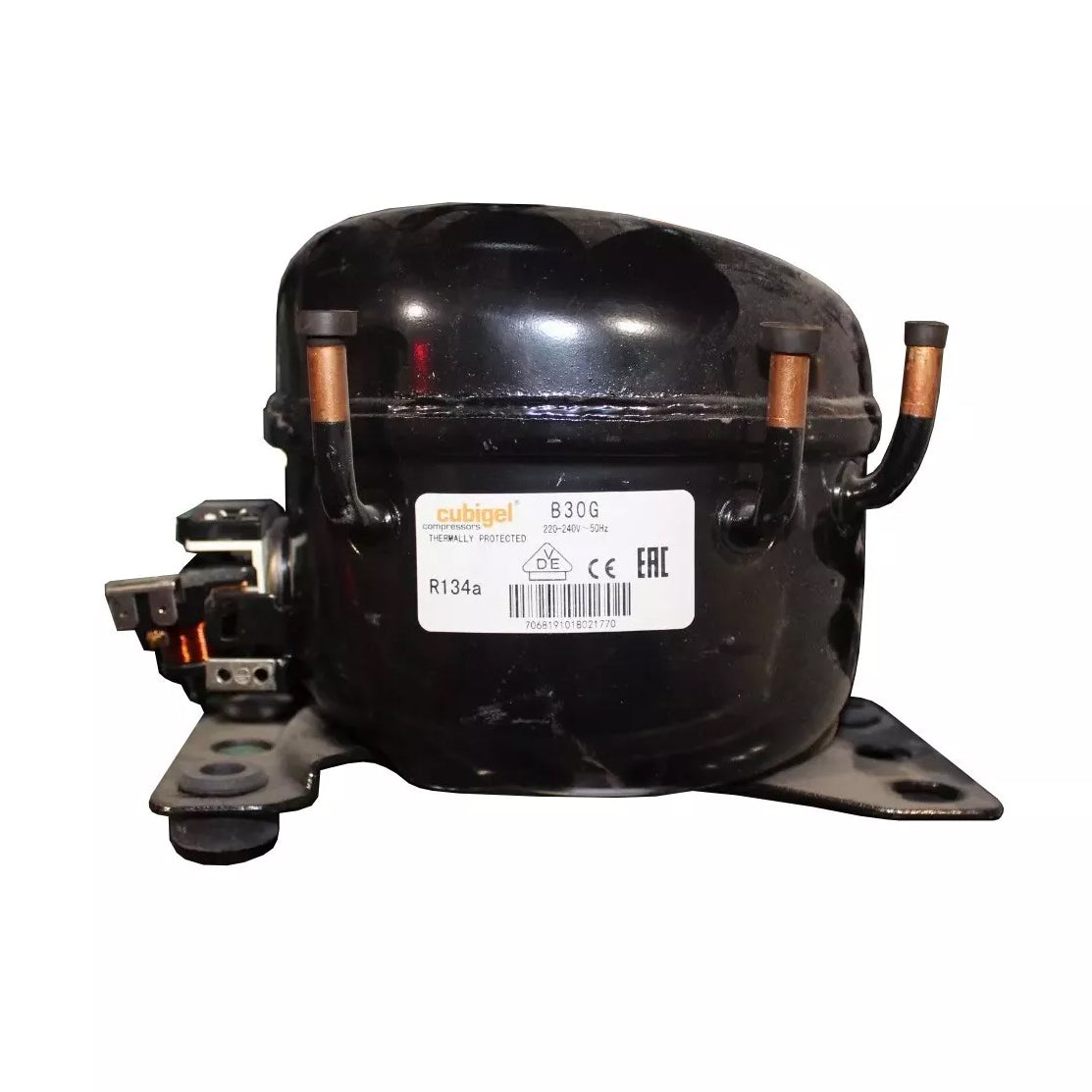

B30G 220-240V 50Hz REF COMPRESSOR

B30G 220-240V 50Hz REF COMPRESSOR

3B5908

£32.24
£32.24 GBP
Sale Sold out
Shipping calculated at checkout.
Legal Disclaimer (Click to Expand) – R134a Compressor (Spare Part Only)
  • Not for use in new equipment.
  • Sold strictly as a spare part for repair/maintenance of R134a systems placed on the market before phase-out dates.
  • Buyer is responsible for ensuring F-Gas regulation compliance.
  • Installation must be by certified personnel.
  • If refrigerant is present, it must be handled or recovered safely.
  • R134a is a high-GWP gas. Prevent leaks and follow environmental best practices.

Use outside of its intended purpose is at the buyer’s own risk. Contact us if unsure about suitability.



Never Used - Sold as Seen

This pallet contains compressors that have been stored in a dry environment for several years.

They have not been tested or inspected, and their operational condition cannot be guaranteed.

To the best of our knowledge, these compressors should be in good working order, as they were fully functional before being placed in storage.

However, due to the time elapsed and the lack of testing, potential buyers should be aware that there may be unforeseen issues.

The items are sold strictly as seen with no warranties, returns, or guarantees provided. Inspection is welcome prior to purchase to assess the physical condition.

By purchasing, you agree to these terms.

For any inquiries or to arrange a viewing, please contact us.


Technical Data Sheet

Compressor model B30G

Voltage        220-240V 50Hz ~1

Refrigerant     R134a

APPLICATION              COMPRESSOR        MOTOR



Application

High Back Pressure

Displacement

3,10 cm³

Nominal Power

1/10 hp

Refrigerant

R134a

Diameter

17,20 mm

Voltage/Frequency

220-240V 50Hz

Evaporating Temp.

-15,0 ºC to 10,0 ºC

Stroke

13,40 mm

Voltage range

187-255 V

Expansion

Capillar/Valve

Net Weight

4,80 Kg

Type

CSIR

Comp. Cooling

Static/Fan cooled

Oil type

POE 32

Phase number

1 PH

Max. ambient temp.

43,0 ºC

Oil charge

120 cm³

Locked Rotor Amps (LRA)

4,00 A

Compatible refriger.

R1234yf





Main W. resist. at 25ºC

25,30 Ω









Start W. resist. at 25ºC

14,90 Ω



NOMINAL PERFORMANCE



ASHRAE

CECOMAF

Cooling Capacity

234 kCal/h

229 W

COP

2,06 W/W

1,77 W/W

EER

1,77 kCal/Wh

1,53 kCal/Wh

Input Power

132 W

129 W

Current

0,89 A

0,88 A






Evaporating temp. (Te) Condensing temp. (Tc) Liquid temp. (Tliq.) Ambient temp. (Tamb.) Suction temp. (Tsuction) Voltage/Frequency

ASHRAE HBP (D) 7,2 ºC

55,0 ºC

46,0 ºC

35,0 ºC

35,0 ºC

220 V 50 Hz

CECOMAF HBP (C) 5,0 ºC

55,0 ºC

55,0 ºC

32,0 ºC

32,0 ºC

220 V 50 Hz


TEST CYCLE CONDITIONS





APPROVALS

Starting capacitor

61 μF 330 V

Relay

Option 1

Reference

QL2-2.80 (008)

Pick-Up

2.8 A

Drop-Out

2.4 A

Protector

Option 1

Reference

DRB18P61A1 (067)

Current



Time check




ELECTRICAL COMPONENTS

Disc temp. (Open/Close)



Brand
Huayi
Compressor Type
Frigeration
Refrigerant
R-134a
Voltage
220-240V 50Hz ~1
Model
B30G
Colour
Black
