Booth Dispensers

MIXED GAS PRIMARY 0-4 BAR REGULATOR WALL MOUNT

MIXED GAS PRIMARY 0-4 BAR REGULATOR WALL MOUNT

SKU:REGMM006

Regular price £86.29
Regular price Sale price £86.29 GBP
Sale Sold out
Shipping calculated at checkout.

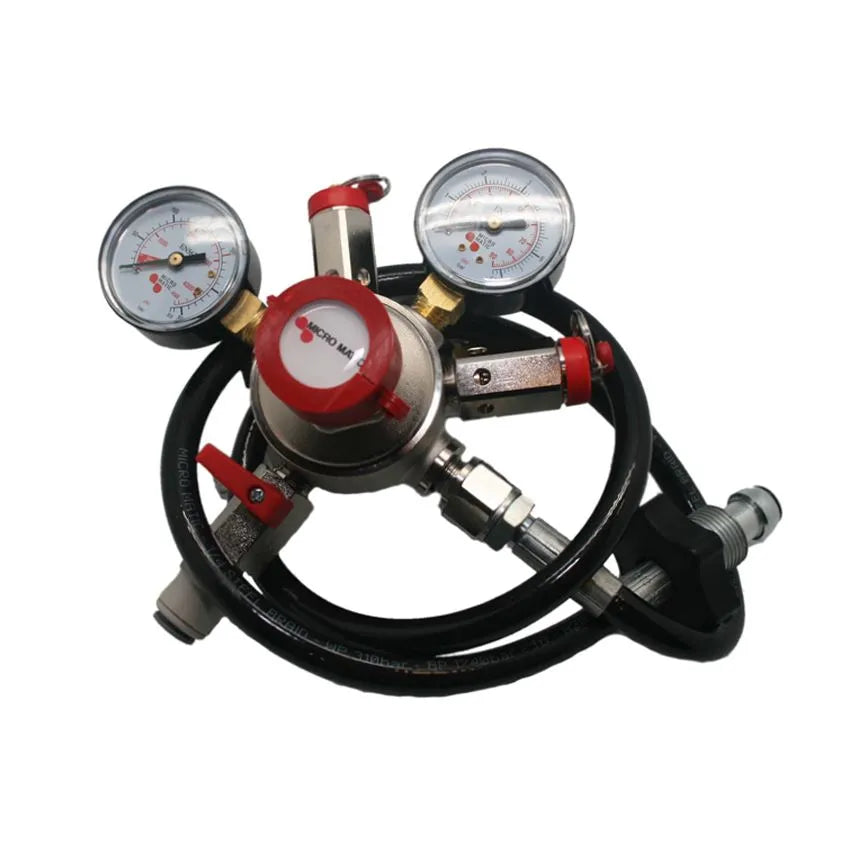

MIXED GAS PRIMARY 0-4 BAR REGULATOR WALL MOUNT

The Mixed Gas Primary Regulator is purposed to control the Outlet pressure from the gas bottle to a maximum 60psi, the Regulators are primarily pre-set to 40/45psig but they can be adjusted to suit the specific needs of the beer. The Regulator is fitted with two pressure release valves set to activate at 65psig for maximum safety in use.

The purchaser must be familiar with the gas regulations and use of gas bottles. It is also a legal requirement to have the regulator safety valves Tested every five years.

The Regulator features an important downstream pressure Gauge as well as the Bottle Contents gauge.

Please Note – The Regulator has a Male Connection to the Mix Gas Bottle.

Part Number - REGMM006

Mixed Gas Regulator Range (Micro Matic)

• Output pressure gauge – 90 psi / 6.2 bar
• Bottle content gauge - 0 - 4500 psi / 315 bar
• Max output pressure - Up to 55 psi / 3.8 bar (Blow-off)
• Twin safety blow-off valves (Ring pull)
• Safety blow-off pressure –  55 psi / 3.8 bar

ALL

• Wall Mounted
• John Guest fittings supplied – 3/8 push fit, 1 per available port
• Re-test label applied
• Manufactured in accordance with Code of Practice for the Dispense of Beer by Pressure Systems in Licensed Premises
